e1000 Series Specifications

21'
22'
23'
24'

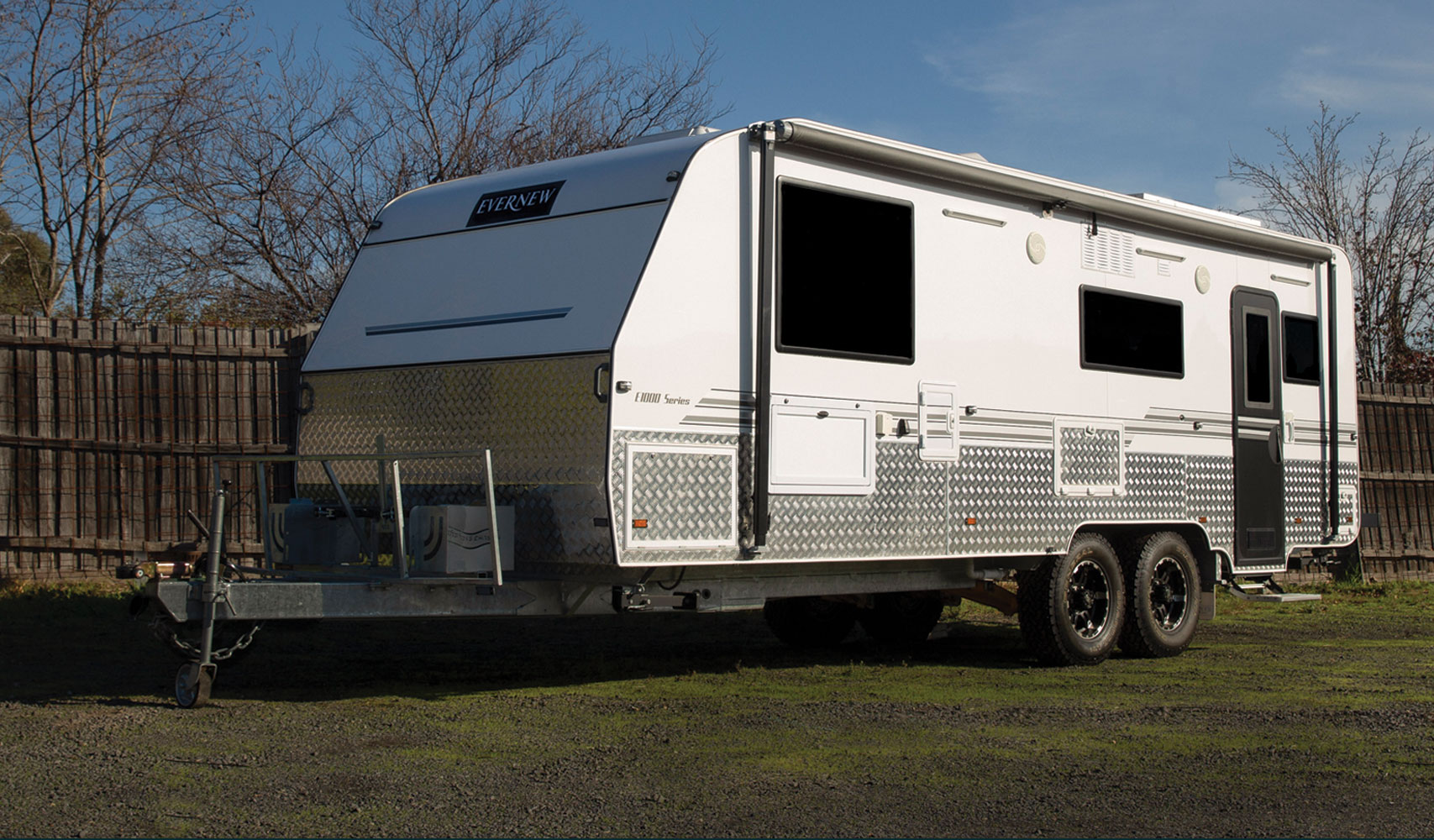

Constructed on a heavy duty chassis with a range of suspension systems and incorporating Evernew Caravans' comprehensive list of standard inclusions and many, many extras, a caravan from Evernew Caravans' E1000 Series range really is like a home away from home. Choose from Evernew Caravans' many popular layouts or alternatively design your own ideal caravan.

A choice of all material colours is available for your selection. Each Evernew Caravan is individually designed and constructed using quality materials by Evernew Caravans' experienced staff. Customers are welcome to view their caravan during its construction phase.

Features

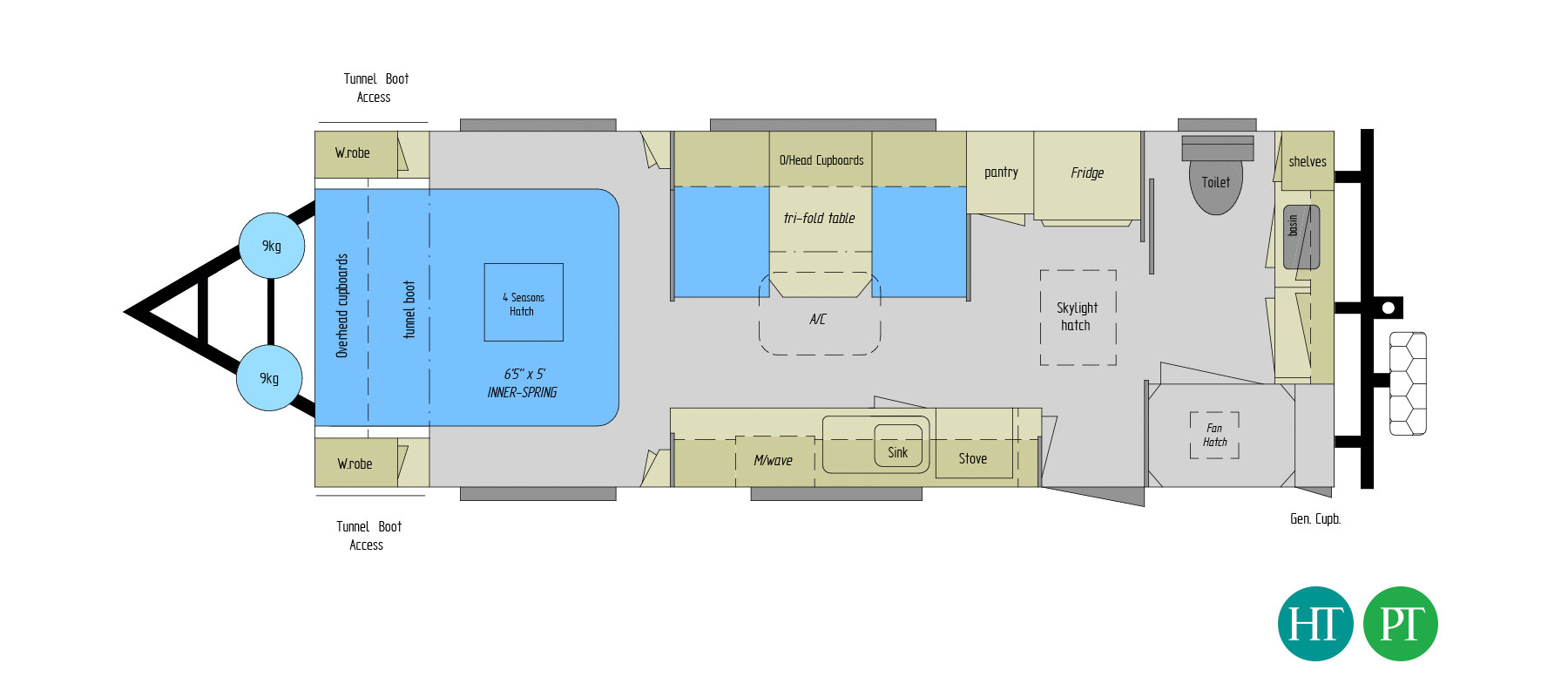

HIGHway TOURER

CHASSIS

Custom designed Hot dipped Galvanised chassis
Built to ADR62/01 standards
Heavy duty 60mm Rocker/Roller leaf spring suspension with beam axles
Single Spare wheel mounted on rear Bumper Bar
Heavy Duty 50mm ball coupling
12" Electric Drum Brakes
Integrated Handbrake
Bike rack mount plate
Aluminium Mesh in drawbar A-frame for storage
100 x 50mm Rear bumper bar with 3 stays
Tyres 265/75R16 Wheels 16 x 8 Alloy
Trail-a-mate Hydraulic Jack Stand & Wheel Brace
Pull-out Step

EXTERNAL APPOINTMENTS

Annexe light (LED) x 3
A&E Dometic 8500 series Roll out Awning
Adjustable corner stabiliser legs
Aluminium checkerplate Front & side protection
Externally accessed generator locker (built in)
Externally accessed storage locker
Heavy duty galvanised fully sealed wheelarches
Galvanised steel water tank protectors
Pressurising Rooftop Scupper vent
2 x 9kg LPG Gas Cylinders with Changeover valve
Mains Pressure water connector and pressure reduction valve
Dometic Tinted Acrylic windows (Double Glazed) - integrated blinds and Flyscreens
Dometic Premium Four Point locking security Door with steel mesh
Galvanised Tunnel boot locker with 2 x External access doors & internal light
External Picnic table

INTERNAL APPOINTMENTS

Flikmixer tap
Deluxe one-piece fibreglass shower module (Ensuite)
Cassette toilet with ceramic bowl

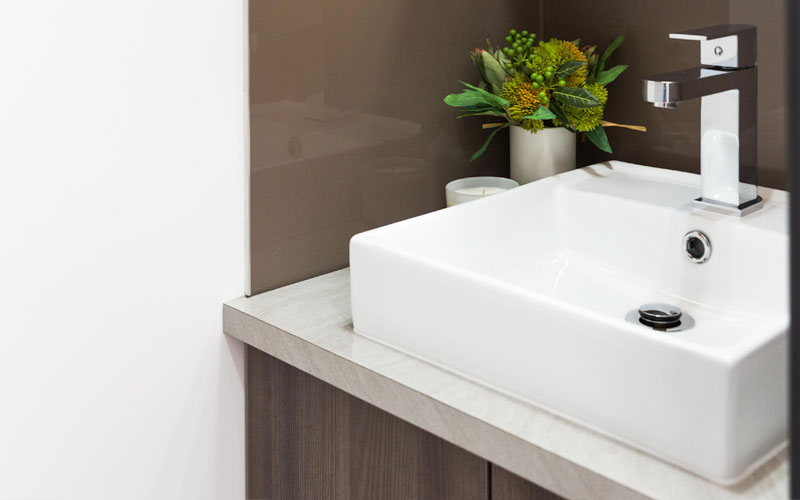

Full ensuite with Separate Shower/toilet, ceramic hand basin, mirror, towel rail
High Quality "Pillow"  Upholstery
Genuine Leather Upholstery

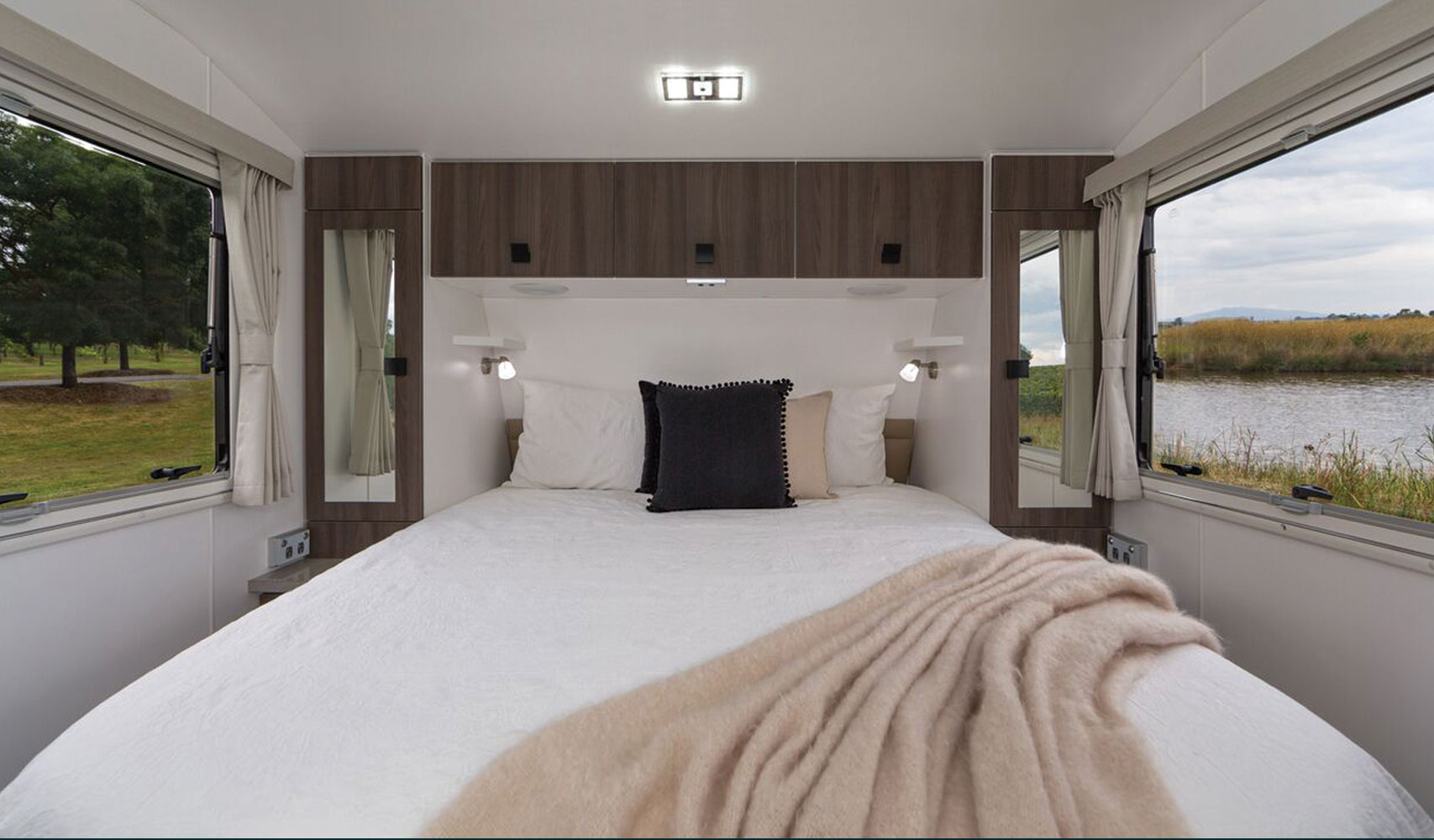

Luxury Queen size innerspring mattress (Lift up base on Gas struts)

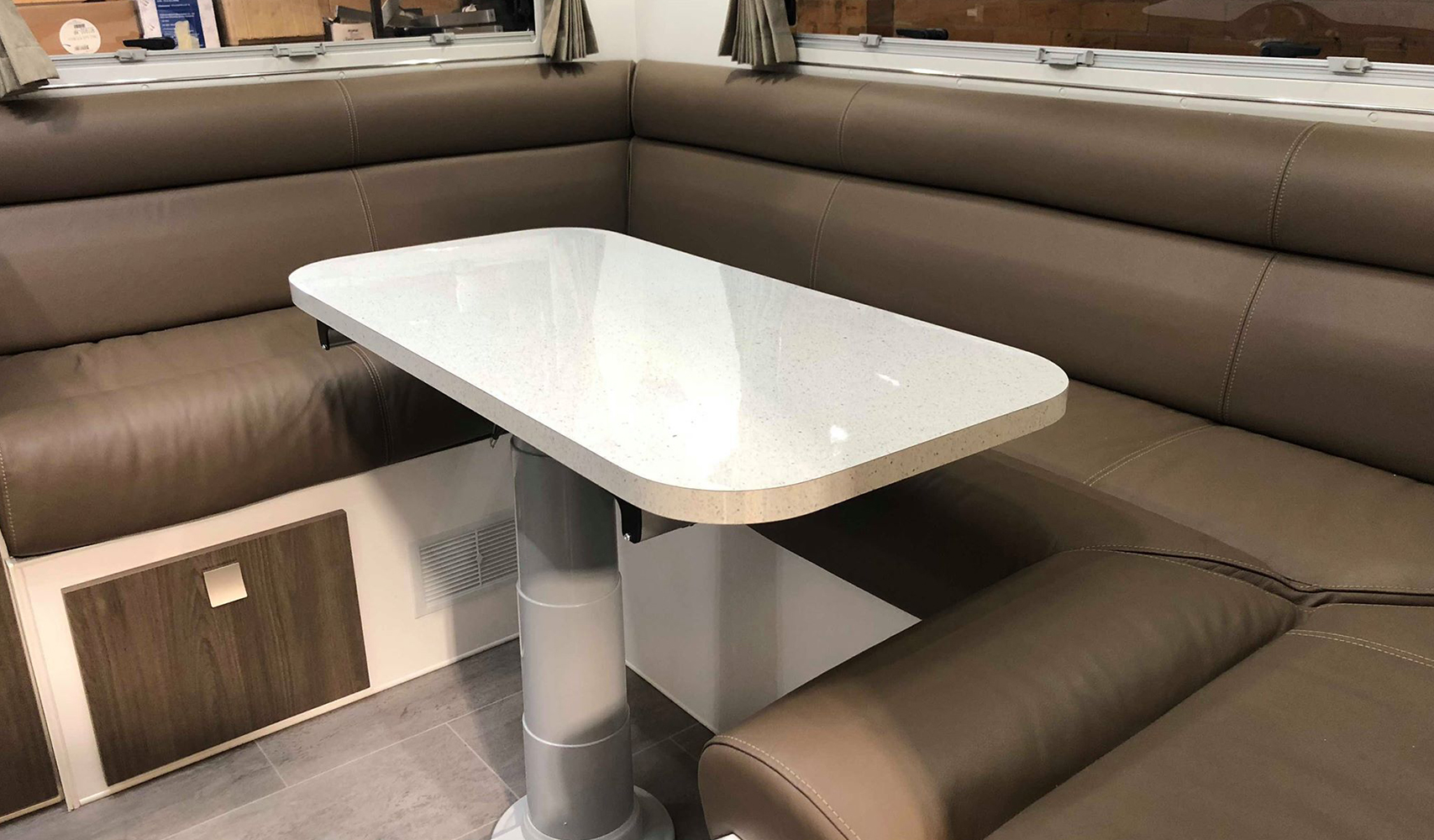

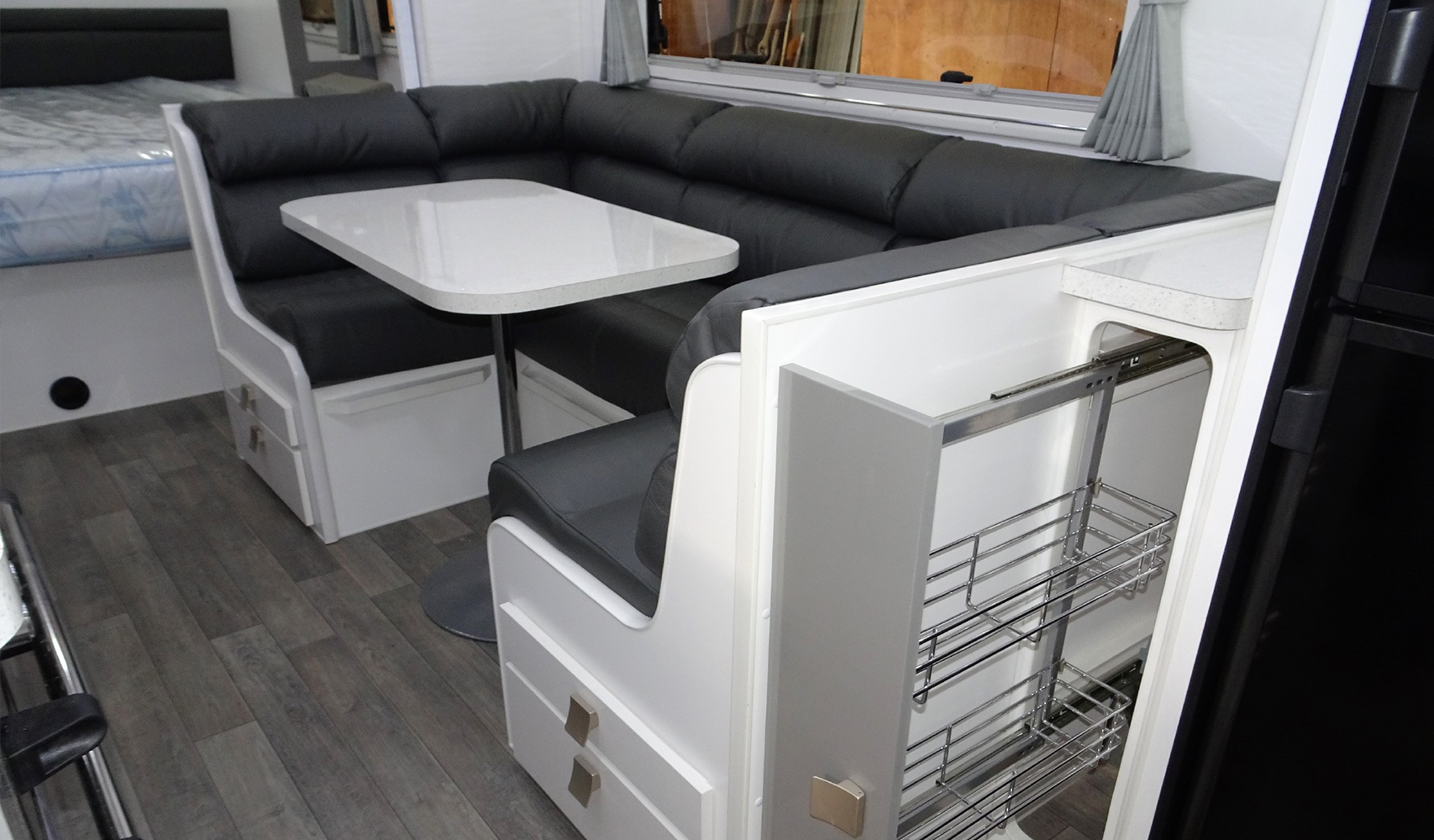

L-Shaped dinette converts to extra bed or Bifold table at café seating
Skylight Hatch
Four Seasons roof hatch
Full height Coloured Gloss Acrylic Splashback to Kitchen & ensuite
Blockout Drawer Curtains and Timber/Fabric Pelmets
Plaza Plus Holland External Door Blind (optional)
Acrylic or Timber internal furniture & cabinets
High grade vinyl flooring
Positive locking Quick-pull catches to cupboards & drawers

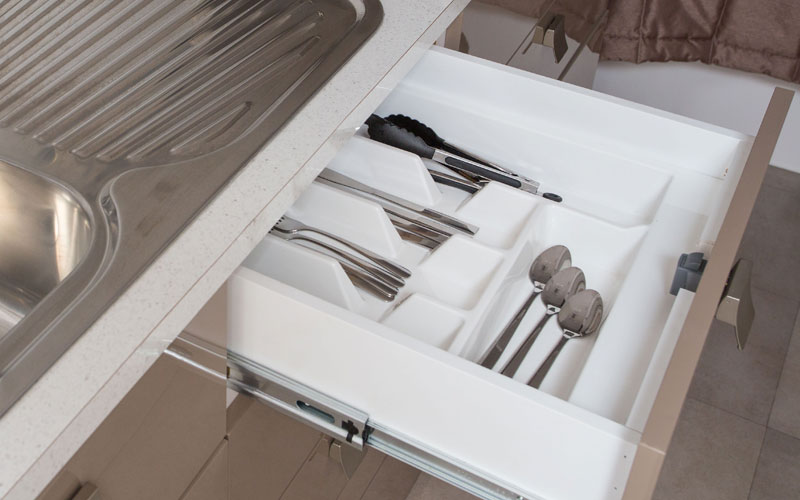

Soft close drawer runners
Laminex square edged benchtops and table

APPLIANCES

Externally vented 12v Rangehood
Deluxe 3 Gas/1 Electric Stove, Grill & Oven
Microwave oven
Dometic 3 Way 190lt Upright Fridge/Freezer
IBIS reverse cycle airconditioner
24" Flat screen TV with inbuilt DVD player

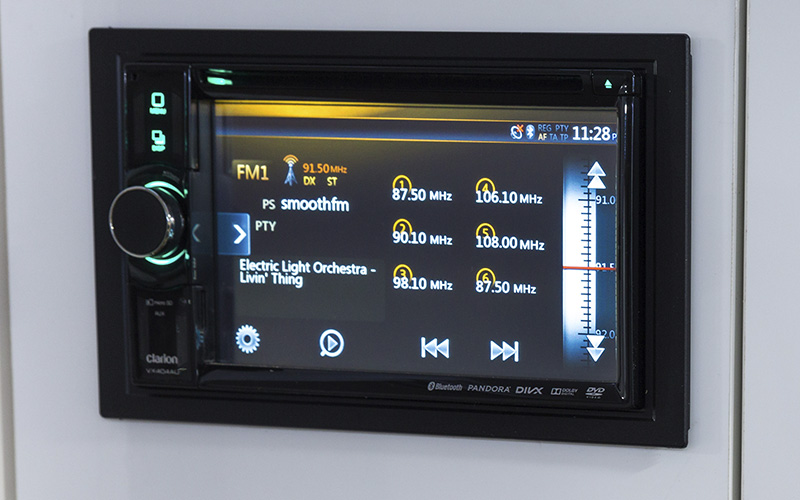

Radio Double DIN CD/MP3/USB + Bluetooth with 4 x Internal Speakers & 2 x External speakers
Winegard sensar HV TV Wind-up TV antenna (Vertical & Horizontal Polorization)
Washing Machine 3.5kg (Top loader)

ELECTRICAL

All Electrical installations compliant with AS3000 & AS300
240/12v Smart Charger
50amp anderson plug & Heavy duty trailer wiring (Individually fused)
Deep cycle AGM batteries (2 x 120 AH)
Roof Mounted 150w Solar panels x 2
External solar input for connection of freestanding solar panel
12v LED Dimmble Internal Roof Lights
12v LED Dimmable lights under overhead cupboards
Aircraft style roof strip lighting (Dimmable)
12v LED Bed lights
12v Power points - 1 internal, 1 external
Ample 240v Double Power points 240v External and 12 volt External power outlet
External TV connection point

PLUMBING

Gas plumbed to AS5601
Water supply system Plumbed to AS3500
Mains tap on drawbar
12v Water pump, accumulator
Gas/Electric Hot water service 28lt
Temperature limiting valve for Hot water
2 x 95lt Water storage tanks with galvanised guards, lockable fillers & water level gauges
Water filtration system
Gas Bayonet

SAFETY

ADR Rated safety chains
Breakaway Emergency brake safety switch
Electric brakes to all wheels
Dexter Stability Control (DSC)
Fire extinguisher
LED Clearance, end marker, stop, tail & indicator lights
Fused 12volt Electrical ciruits
240V Earth Leakage Circuit Breaker
Rear vision camera, car screen & Heavy duty connection cable
Smoke detector
Trail-a-mate Hydraulic Jack stand & Wheel Brace
Gas Leakage detector

CONSTRUCTION

Meranti Timber Frame
Body Bonded & Bolted to Chassis
Coated Waterproof Laminated Floor
Full body insulation (Walls & roof)

OPTIONS (available in some models)

Rear Cutaway (Increased departure angle) #
External aluminium Composite Panel smooth (White or Silver) *
Twin Spare wheel mounted on rear Bumper Bar *
Spare wheel mounted on Ratchet under van *
2 x Front mounted Jerry can holders *
Steel framed shade mesh stoneguard on drawbar *
Wheels sized to suit tow vehicle (available for some vehicles) *
Centre support & Tension rafter for A&E 8500 series Awning *
External Checkerplate Box on Rear Bumper Bar *
2 x External Picnic table #

Lithium-iron-phosphate (LiFePO4) Battery Systems (system available from 100AH - 400AH) *
Pure Sinewave Inverter 600-3000w *
Additional Roof Mounted 150w Solar panels  (Space permitting) *
Fully Automatic satellite TV Receiver & dish *
2nd 12v Water Pump, accumulator dedicated to 1 x water tank *
Additional 65lt Water storage tanks with galvanised guards, lockable fillers & water level gauges *
Additional 95lt Water storage tanks with galvanised guards, lockable fillers & water level gauges *
1 x 95lt Grey water tank *
Luxury Queen size innerspring mattress with Pillow top (Lift up base on Gas struts) *
Luxury Single size innerspring mattress (Lift up base on Gas struts) *
12v Sirocco fan/s *
Hardwood internal furniture & cabinets *

Hardwood edged Benchtops and Table *
Deluxe 3 Gas/1 Electric Stove, Grill & fan Forced Oven *
Dometic/Waeco 215lt Compressor Fridge/freezer *
Webasto Diesel heater with External 10lt fuel tank *
Dometic E2400 Gas Heater *
32" Flat screen TV with inbuilt DVD player *
Washing machine 4.0kg ( front loader) #
Washing machine 3.0kg ( front loader) #



* Optional Extra
# Available/Optional - Some models only


PREMIUM TOURER

CHASSIS

Custom designed Hot dipped Galvanised chassis
Built to ADR62/01 standards
Cruisemaster CRS2 (Country road) Independent trailing arm coil spring suspension with single shock absorbers
Single Spare wheel mounted on rear Bumper Bar
Integrated Handbrake
Bike rack mount plate
Aluminium Mesh in drawbar A-frame for storage
100 x 50mm Rear bumper bar with 3 stays
Tyres 265/75R26 Wheels 16 x 8 Alloy
Trail-a-mate Hydraulic Jack stand & Wheel Brace
Pull-out Entry step

EXTERNAL APPOINTMENTS

Annexe light (LED) x 3
A&E Dometic 8500 series Roll out Awning
Adjustable corner stabiliser legs
Aluminium checkerplate Front & side protection
Externally accessed generator locker (built in)
Externally accessed storage locker
Heavy duty galvanised fully sealed wheelarches
Galvanised steel water tank protectors
Pressurising Rooftop Scupper vent
2 x 9kg LPG Gas Cylinders with Changeover valve
Mains Pressure water connector and pressure reduction valve
Dometic Tinted Acrylic windows (Double Glazed) - integrated blinds and Flyscreens
Dometic Premium Four Point locking security Door with steel mesh
Galvanised Tunnel boot locker with 2 x External access doors & internal light
External Picnic table

INTERNAL APPOINTMENTS

Flikmixer tap
Deluxe one-piece fibreglass shower module (Ensuite)
Cassette toilet with ceramic bowl
Full ensuite with Separate Shower/toilet, ceramic hand basin, mirror, towel rail
High Quality "Pillow" Upholstery
Genuine Leather Upholstery
Luxury Queen size innerspring mattress (Lift up base on Gas struts)
L-Shaped dinette converts to extra bed or Bifold table at café seating
Skylight Hatch
Four Seasons roof hatch
Full height Coloured Gloss Acrylic Splashback to Kitchen & ensuite
Blockout Drawer Curtains and Timber/Fabric Pelmets
Plaza Plus Holland External Door Blind (optional)
Acrylic or Timber internal furniture & cabinets
High grade vinyl flooring
Positive locking Quick-pull catches to cupboards & drawers
Soft close drawer runners
Laminex square edged benchtops and table

APPLIANCES

Externally vented 12v Rangehood
Deluxe 3 Gas/1 Electric Stove, Grill & Oven
Microwave oven
Dometic 3 Way 190lt Upright Fridge/Freezer
IBIS reverse cycle airconditioner
24" Flat screen TV with inbuilt DVD player
Radio Double DIN CD/MP3/USB + Bluetooth with 4 x Internal Speakers & 2 x External speakers
Winegard sensar HV TV Wind-up TV antenna (Vertical & Horizontal Polorization)
Washing Machine 3.5kg (Top loader)

ELECTRICAL

All Electrical installations compliant with AS3000 & AS300
240/12v Smart Charger
50amp anderson plug & Heavy duty trailer wiring (Individually fused)
Deep cycle AGM batteries (2 x 120 AH)
Roof Mounted 150w Solar panels x 2
External solar input for connection of freestanding solar panel
12v LED Dimmble Internal Roof Lights
12v LED Dimmable lights under overhead cupboards
Aircraft style roof strip lighting (Dimmable)
12v LED Bed lights
12v Power points - 1 internal, 1 external
Ample 240v Double Power points 240v External and 12 volt External power outlet
External TV connection point

PLUMBING

Gas plumbed to AS5601
Water supply system Plumbed to AS3500
Mains tap on drawbar
12v Water pump, accumulator
Gas/Electric Hot water service 28lt
Temperature limiting valve for Hot water
2 x 65lt Water storage tanks with galvanised guards, lockable fillers & water level gauges
Gas Bayonet

SAFETY

ADR Rated safety chains
Breakaway Emergency brake safety switch
Electric brakes to all wheels
Dexter Stability Control (DSC)
Fire extinguisher
LED Clearance, end marker, stop, tail & indicator lights
Fused 12volt Electrical ciruits
240V Earth Leakage Circuit Breaker
Rear vision camera, car screen & Heavy duty connection cable
Smoke detector
Trail-a-mate Hydraulic Jack stand & Wheel Brace
Gas Leakage detector

CONSTRUCTION

Meranti Timber Frame
Body Bonded & Bolted to Chassis
Coated Waterproof Laminated Floor
Full body insulation (Walls & roof)

OPTIONS (available in some models)

Rear Cutaway (Increased departure angle) #
External aluminium Composite Panel Smooth (White or Silver)*
Twin Spare wheel mounted on rear Bumper Bar *
Spare wheel mounted on Ratchet under van *
2 x Front mounted Jerry can holders *
Steel framed shade mesh stoneguard on drawbar *
Wheels sized to suit tow vehicle (available for some vehicles) *
Centre support & Tension rafter for A&E 8500 series Awning *
2 x External Picnic table #

Lithium-iron-phosphate (LiFePO4) Battery Systems (system available from 100AH - 400AH) *
Pure Sinewave Inverter 600-3000w *
Additional Roof Mounted 150w Solar panels  (Space permitting) *
Fully Automatic satellite TV Receiver & dish *
2nd 12v Water Pump, accumulator dedicated to 1 x water tank *
Additional 65lt Water storage tanks with galvanised guards, lockable fillers & water level gauges *
Additional 95lt Water storage tanks with galvanised guards, lockable fillers & water level gauges *
1 x 95lt Grey water tank *
Luxury Queen size innerspring mattress with Pillow top (Lift up base on Gas struts) *
Luxury Single size innerspring mattress (Lift up base on Gas struts) *
12v Sirocco fan/s *

Hardwood internal furniture & cabinets *
Hardwood edged Benchtops and Table *
Deluxe 3 Gas/1 Electric Stove, Grill & fan Forced Oven *
Dometic/Waeco 215lt Compressor Fridge/freezer *
Webasto Diesel heater with External 10lt fuel tank *
Dometic E2400 Gas Heater *
32" Flat screen TV with inbuilt DVD player *
Washing machine 4.0kg ( front loader) #
Washing machine 3.0kg ( front loader) #

* Optional Extra
# Available/Optional - Some models only

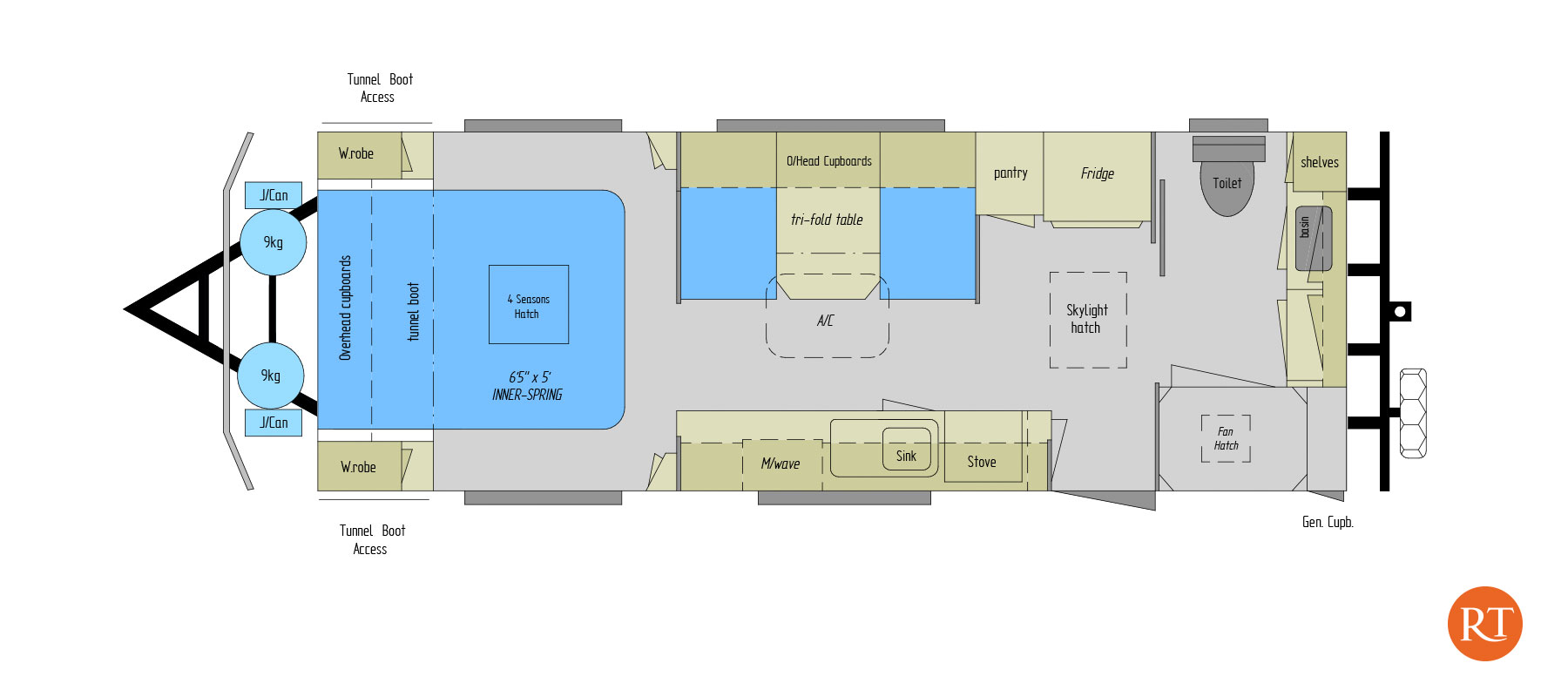

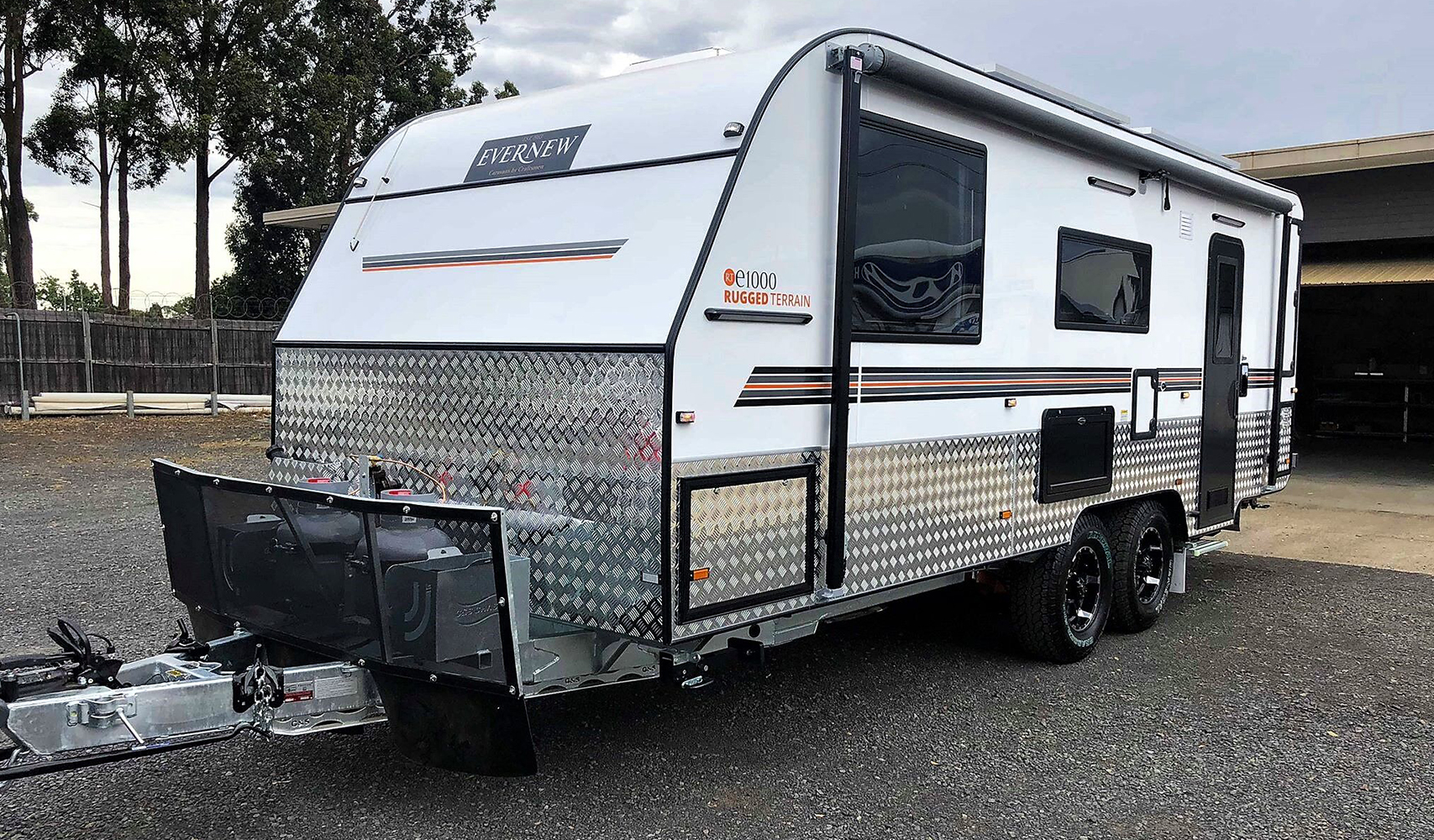

RUGGED TERRAIN

CHASSIS

Custom designed Hot dipped Galvanised chassis
Built to ADR62/01 standards
Cruisemaster XT 3700KG Coil (Offroad) Independent trailing arm coil spring suspension with Twin shock absorbers
Single Spare wheel and cover mounted on rear Bumper Bar
3500kg DO35 Off road Articulated Tow coupling
Integrated Handbrake
2 x Front mounted Jerry can holders
Bike rack mount plate
Steel framed shade mesh stoneguard on drawbar
Aluminium Mesh in drawbar A-frame for storage
100 x 50mm Rear bumper bar with 4 stays
Tyres 265/75R16 Wheels 16 x 8 Alloy
Pull-out Entry step

EXTERNAL APPOINTMENTS

Annexe light (LED) x 3
External aluminium cladding Ribbed (White or Silver)
A&E Dometic 8500 series Roll out Awning
Adjustable corner stabiliser legs
Aluminium checkerplate Front, side & rear protection
Externally accessed generator locker (built in)
Externally accessed storage locker
Heavy duty galvanised fully sealed wheelarches
Galvanised steel water tank protectors
Pressurising Rooftop Scupper vent
2 x 9kg LPG Gas Cylinders with Changeover valve
Mains Pressure water connector and pressure reduction valve
Dometic Tinted Acrylic windows (Double Glazed) - integrated blinds and Flyscreens
Dometic Premium Four Point locking security Door with steel mesh
Galvanised Tunnel boot locker with 2x External access doors & internal light
External Picnic table

INTERNAL APPOINTMENTS

Flikmixer tap
Deluxe one-piece fibreglass shower module (Ensuite)
Cassette toilet with ceramic bowl
Full ensuite with Separate Shower/toilet, ceramic hand basin, mirror, towel rail
High Quality "Pillow" Upholstery
Genuine Leather Upholstery
Luxury Queen size innerspring mattress (Lift up base on Gas struts)
L-Shaped dinette converts to extra bed or Bifold table at café seating
Skylight Hatch
Four Seasons roof hatch
Full height Coloured Gloss Acrylic Splashback to Kitchen & ensuite
Blockout Drawer Curtains and Timber/Fabric Pelmets
Plaza Plus Holland External Door Blind(optional)
Acrylic or Timber internal furniture & cabinets
High grade vinyl flooring
Positive locking Quick-pull catches to cupboards & drawers
Soft close drawer runners
Laminex square edged benchtops and table

APPLIANCES

Externally vented 12v Rangehood
Deluxe 3 Gas/1 Electric Stove, Grill & Oven
Microwave oven
Dometic 3 Way 190lt Upright Fridge/Freezer
IBIS reverse cycle airconditioner
24" Flat screen TV with inbuilt DVD player
Radio Double DIN CD/MP3/USB + Bluetooth with 4 x Internal Speakers & 2 x External speakers
Winegard sensar HV TV Wind-up TV antenna (Vertical & Horizontal Polorization)
Washing Machine 3.5kg (Top loader)

ELECTRICAL

All Electrical installations compliant with AS3000 & AS300
240/12v Smart Charger
50amp anderson plug & Heavy duty trailer wiring (Individually fused)
Deep cycle AGM Batteries (2 x 120 AH)
Roof Mounted 150w Solar panels x 2
External solar input for connection of freestanding solar panel
12v LED Dimmble Internal Roof Lights
12v LED Dimmable lights under overhead cupboards Aircraft style roof strip lighting (Dimmable)
12v LED Bed lights
12v Power points - 1 internal, 1 external
Ample 240v Double Power points
240v External and 12 volt External power outlet
External TV connection point

PLUMBING

Gas plumbed to AS5601
Water supply system Plumbed to AS3500
Mains tap on drawbar
12v Water pump, accumulator
Gas/Electric Hot water service 28lt
Temperature limiting valve for Hot water
2 x 95lt Water storage tanks with galvanised guards, lockable fillers & water level gauges
Water filtration system
Gas Bayonet

SAFETY

ADR Rated safety chains
Breakaway Emergency brake safety switch
Electric brakes to all wheels
Dexter Stability Control (DSC)
Fire extinguisher
LED Clearance, end marker, stop, tail & indicator lights
Fused 12volt Electrical ciruits
240V Earth Leakage Circuit Breaker
Rear vision camera, car screen & Heavy duty connection cable
Smoke detector
Trail-a-mate Hydraulic Jack stand & Wheel Brace
Gas Leakage detector

CONSTRUCTION

Meranti Timber Frame
Body Bonded & Bolted to Chassis
Coated Waterproof Laminated Floor
Full body insulation (Walls & roof)

OPTIONS (available in some models)

Rear Cutaway (Increased departure angle) #
External aluminium Composite Panel smooth (White or Silver)*
Twin Spare wheel mounted on rear Bumper Bar *
Spare wheel mounted on Ratchet under van *
2 x Front mounted Jerry can holders *
Steel framed shade mesh stoneguard on drawbar *
Wheels sized to suit tow vehicle (available for some vehicles) *
Centre support & Tension rafter for A&E 8500 series Awning *
External Checkerplate Box on Rear Bumper Bar *

2 x External Picnic table #
Lithium-iron-phosphate (LiFePO4) Battery Systems (system available from 100AH - 400AH) *
Pure Sinewave Inverter 600-3000w *
Additional Roof Mounted 150w Solar panels (Space permitting) *
Fully Automatic satellite TV Receiver & dish *
2nd 12v Water Pump, accumulator dedicated to 1 x water tank *
Additional 65lt Water storage tanks with galvanised guards, lockable fillers & water level gauges *
Additional 95lt Water storage tanks with galvanised guards, lockable fillers & water level gauges *
1 x 95lt Grey water tank *
Luxury Queen size innerspring mattress with Pillow top (Lift up base on Gas struts) *
Luxury Single size innerspring mattress (Lift up base on Gas struts) *

12v Sirocco fan/s *
Hardwood internal furniture & cabinets *
Hardwood edged Benchtops and Table *
Deluxe 3 Gas/1 Electric Stove, Grill & fan Forced Oven *
Dometic/Waeco 215lt Compressor Fridge/freezer *
Webasto Diesel heater with External 10lt fuel tank *
Dometic E2400 Gas Heater *
32" Flat screen TV with inbuilt DVD player *
Washing machine 4.0kg ( front loader) #
Washing machine 3.0kg ( front loader) #

* Optional Extra
# Available/Optional - Some models only

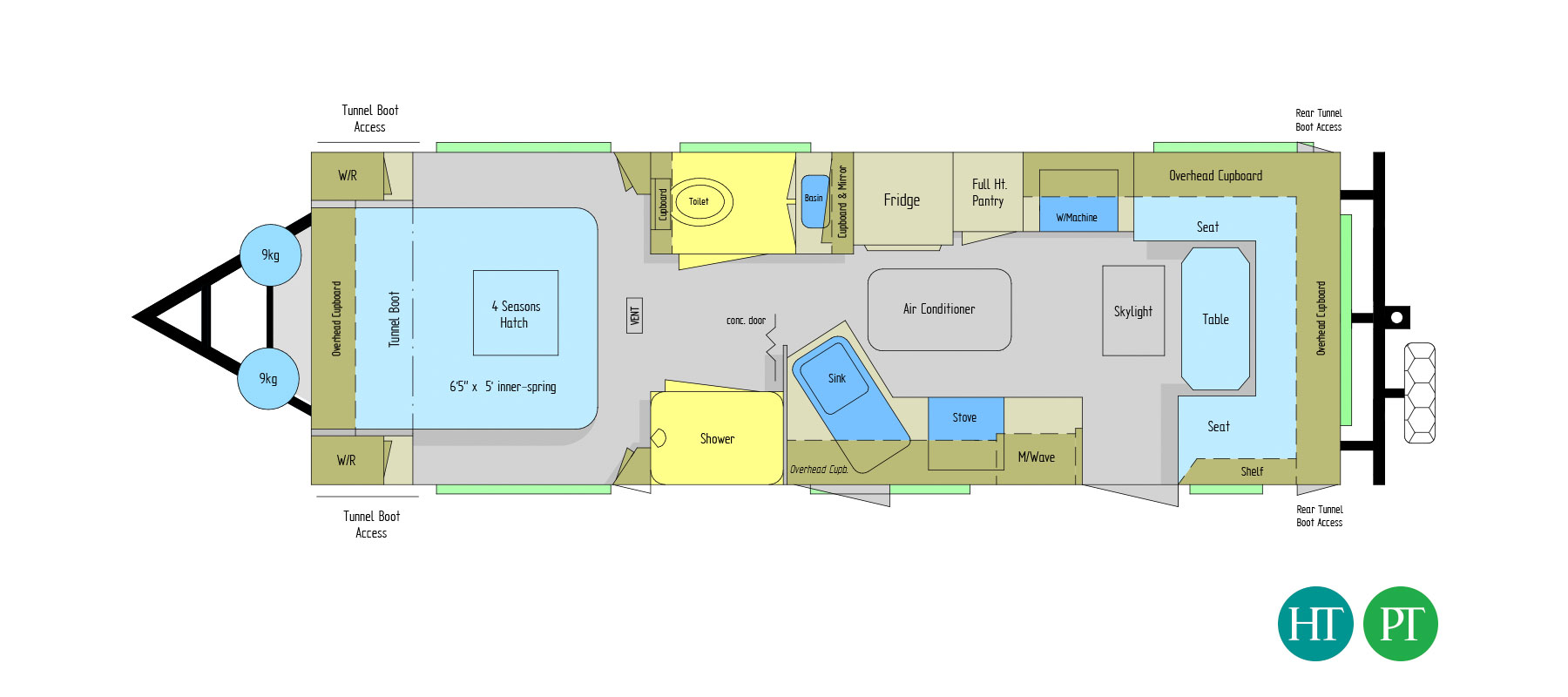

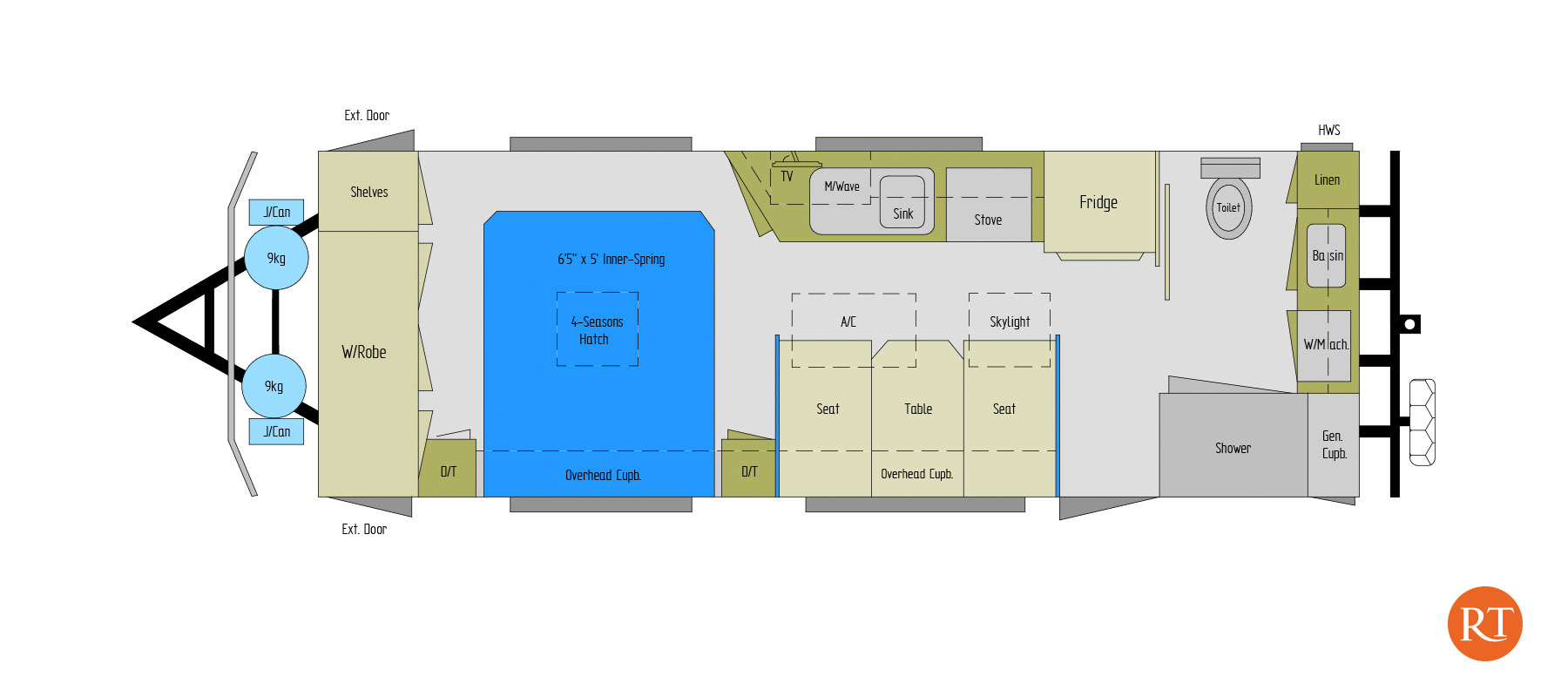

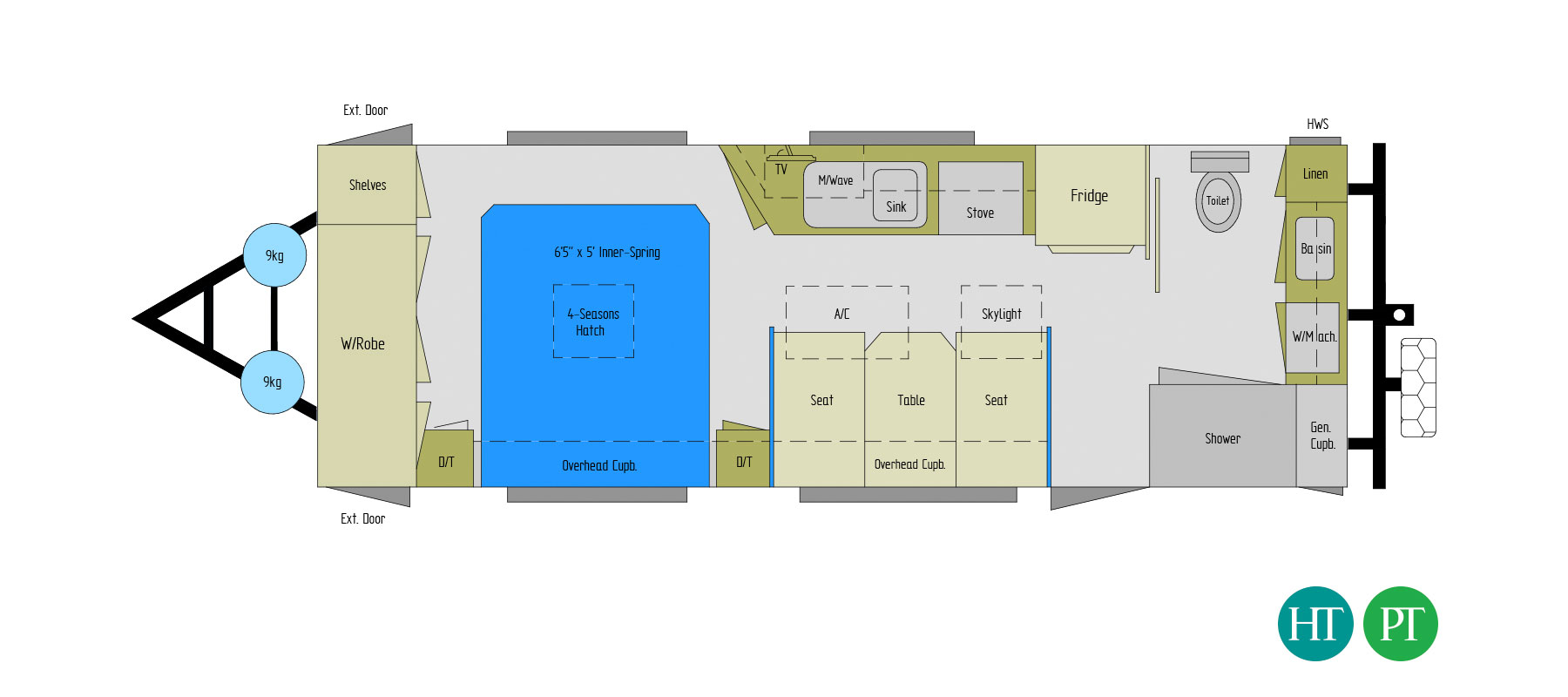

e1000 SERIES INTERNAL LAYOUT

21' Layout

21' Layout

22' Layout

22' Layout

23' Layout

23' Layout

What our customers have to say about us

Recently picked up our triple bunk E900i and absolutely love the quality and layout. All throughout the build we had thorough communication and were always welcomed to come down and see our van at any stage. Thankyou again.

KELLY VARTY

We have our second Evernew caravan and have travelled twice up through outback NSW & Queensland down the coast, up the centre & down the west coast them back to Melbourne. Just love our Evernew & would buy none other. Everyone who looks through our 1000 series is impressed. After sales service is second to none.

Luanda Pianta

Caravans & Poptops

Evernew Caravans features a range of models in sizes ranging from the 13' e600 single axle, right through to the premium family sized e1000. Each Evernew Caravan is manufactured on site in our factory located in Melbourne, Australia.  We pride ourselves on our custom design process that allows us to build the perfect caravan or pop-top for your needs.

" "
