e800 Series Specifications

17'

For those travellers looking for a little extra room the Evernew custom built E800 Series range of caravans is the perfect choice. Solidly constructed, with a range of suspension systems to suit any application.  Built with a comprehensive list of standard inclusions and a range of optional extras.  The e800 Series is available in both full height and pop-top options

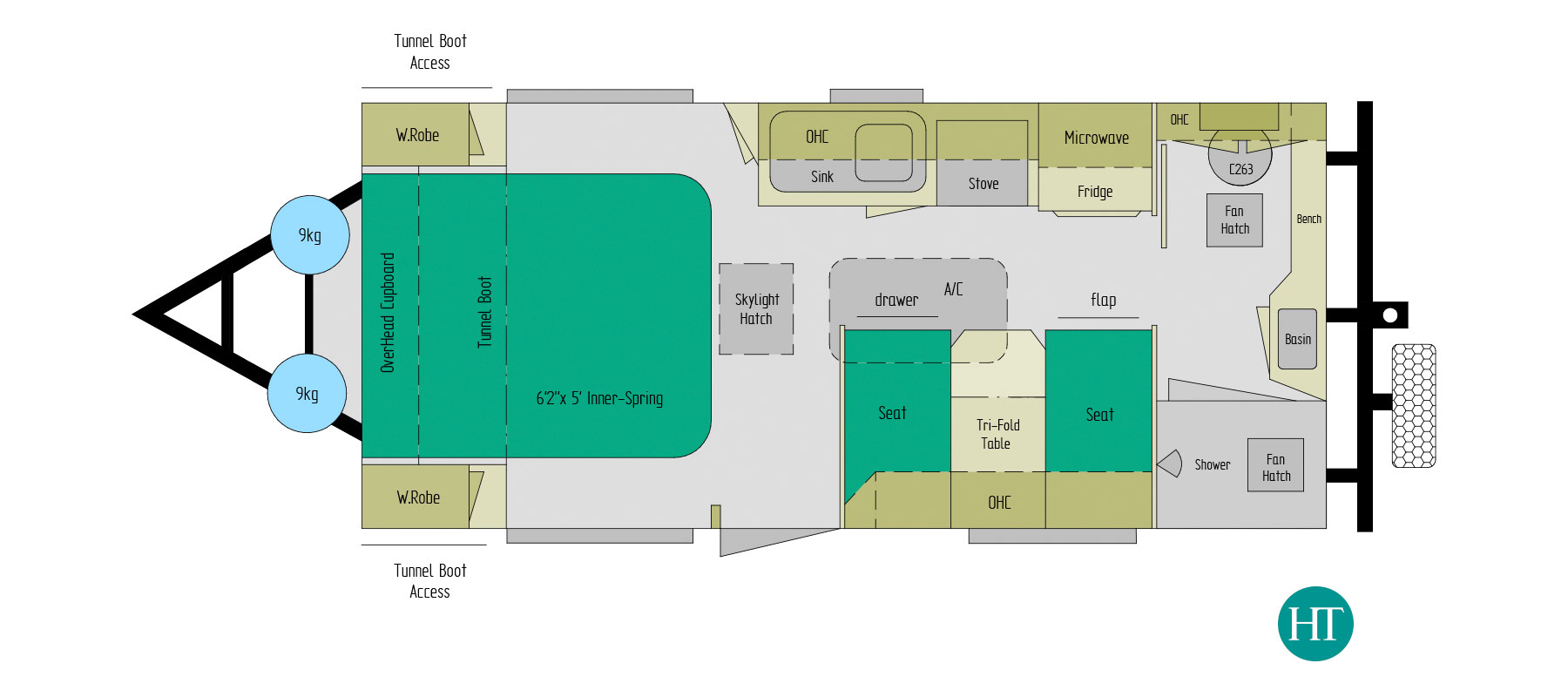

Choose from one of Evernew Caravans' many floor plan layouts or alternatively let Evernew Caravans assist you to design your ideal caravan or pop-top. A choice of all material colours is available for your selection. Each Evernew Caravan is individually designed and constructed using quality materials by Evernew Caravans' experienced staff. Customers are welcome to view their caravan during its construction phase.

Features

HIGHWAY TOURER

CHASSIS

Built to ADR62/01 standards
Heavy duty 60mm Rocker/Roller leaf spring suspension with beam axles
Single Spare wheel mounted on rear Bumper Bar 3000kg Heavy Duty 50mm ball coupling
Integrated Handbrake
Bike rack mount plate
Aluminium Mesh in drawbar A-frame for storage
100 x 50mm Rear bumper bar with 3 stays
Tyres 265/75R16 with 16 x 8 Alloy

EXTERNAL APPOINTMENTS

Annexe light (LED) x 2
External aluminium cladding Ribbed (White or Silver)
A&E Dometic 8500 series Roll out Awning
Adjustable corner stabiliser legs
Aluminium checkerplate front, side & rear protection
Heavy duty galvanised fully sealed wheelarches
Galvanised steel water tank protectors
Pressurising Rooftop Scupper vent
2 x 9kg LPG Gas Cylinders with Regulator & Changeover valve
Mains Pressure water connector and pressure reduction valve
Mudflaps
Pull-out Entry step
Dometic Tinted Acrylic windows (Double Glazed) - integrated blinds and Flyscreens
Dometic Premium Four Point locking security Door with steel mesh
Galvanised Tunnel boot locker with 2 x External access doors & internal light
External Picnic table

INTERNAL APPOINTMENTS

Flikmixer tap

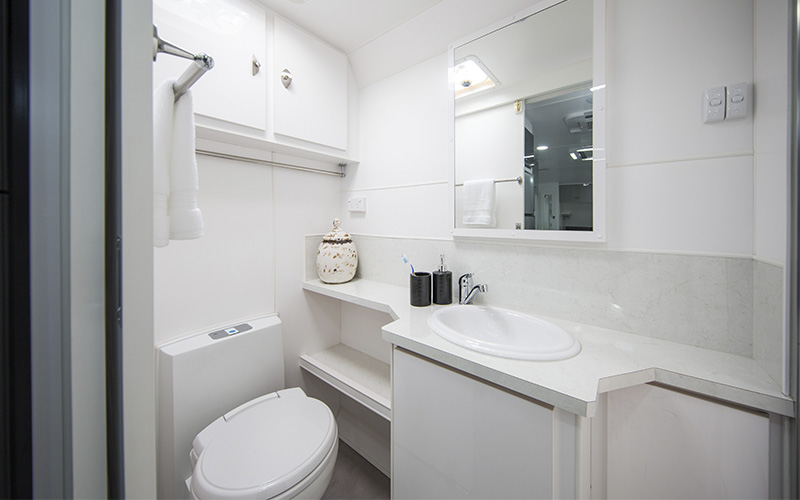

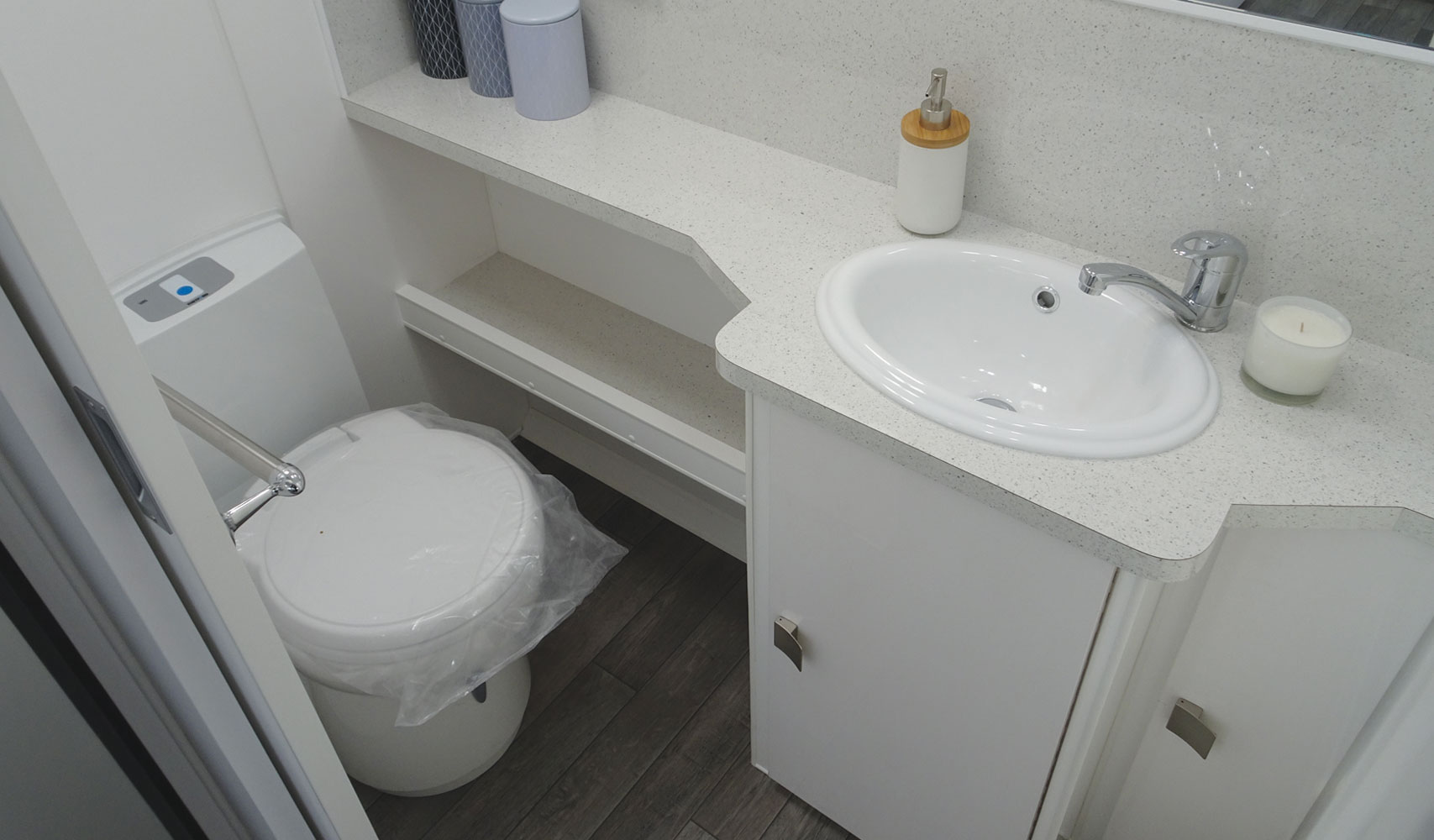

Cassette toilet with ceramic bowl

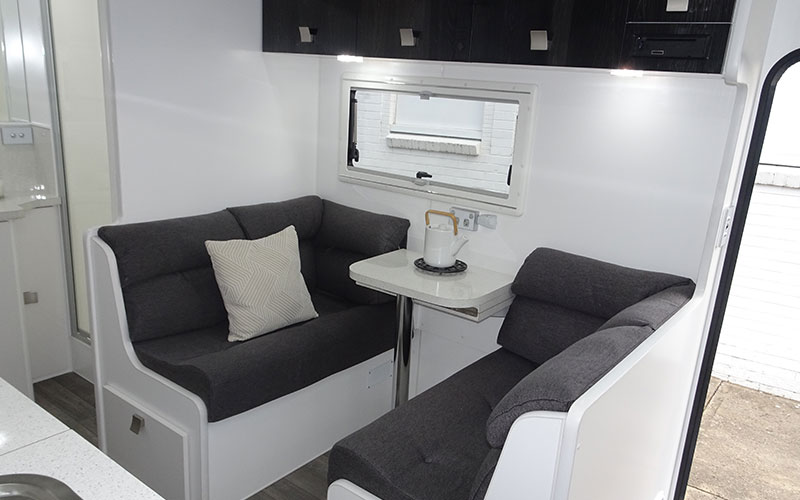

High Quality "Pillow" Upholstery

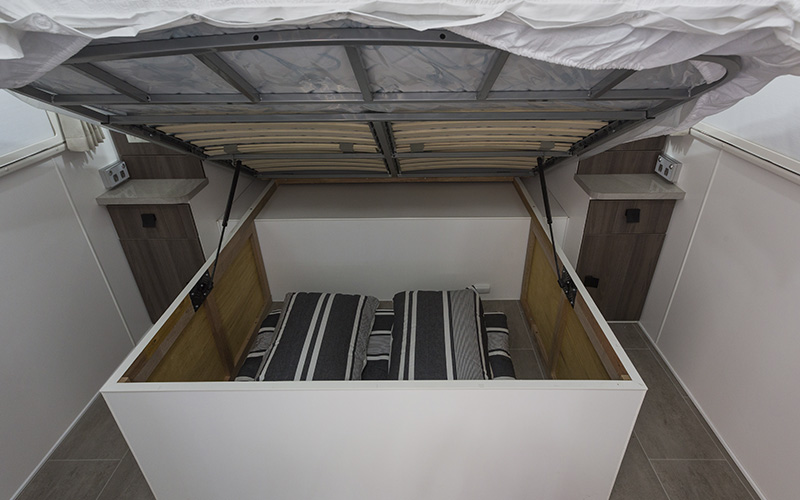

Luxury Queen size innerspring mattress (Lift up base on Gas struts)

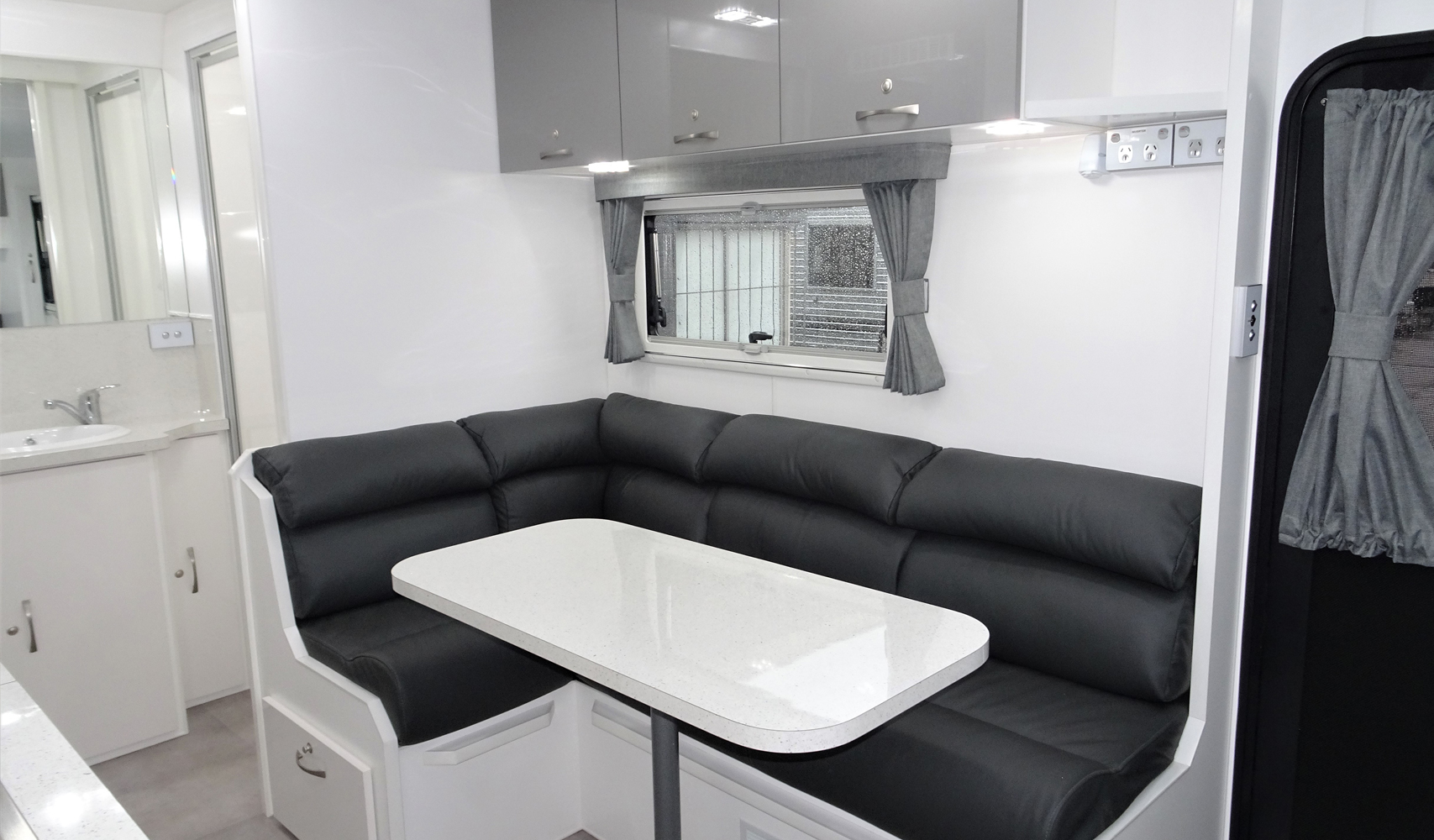

L-Shaped dinette converts to extra bed or Bifold table at café seating
Skylight hatch
Full height Laminex Splashback to Kitchen & Ensuite
Blockout Curtains & Pelmets
Acrylic or Timber internal furniture & cabinets
Soft close drawer runners

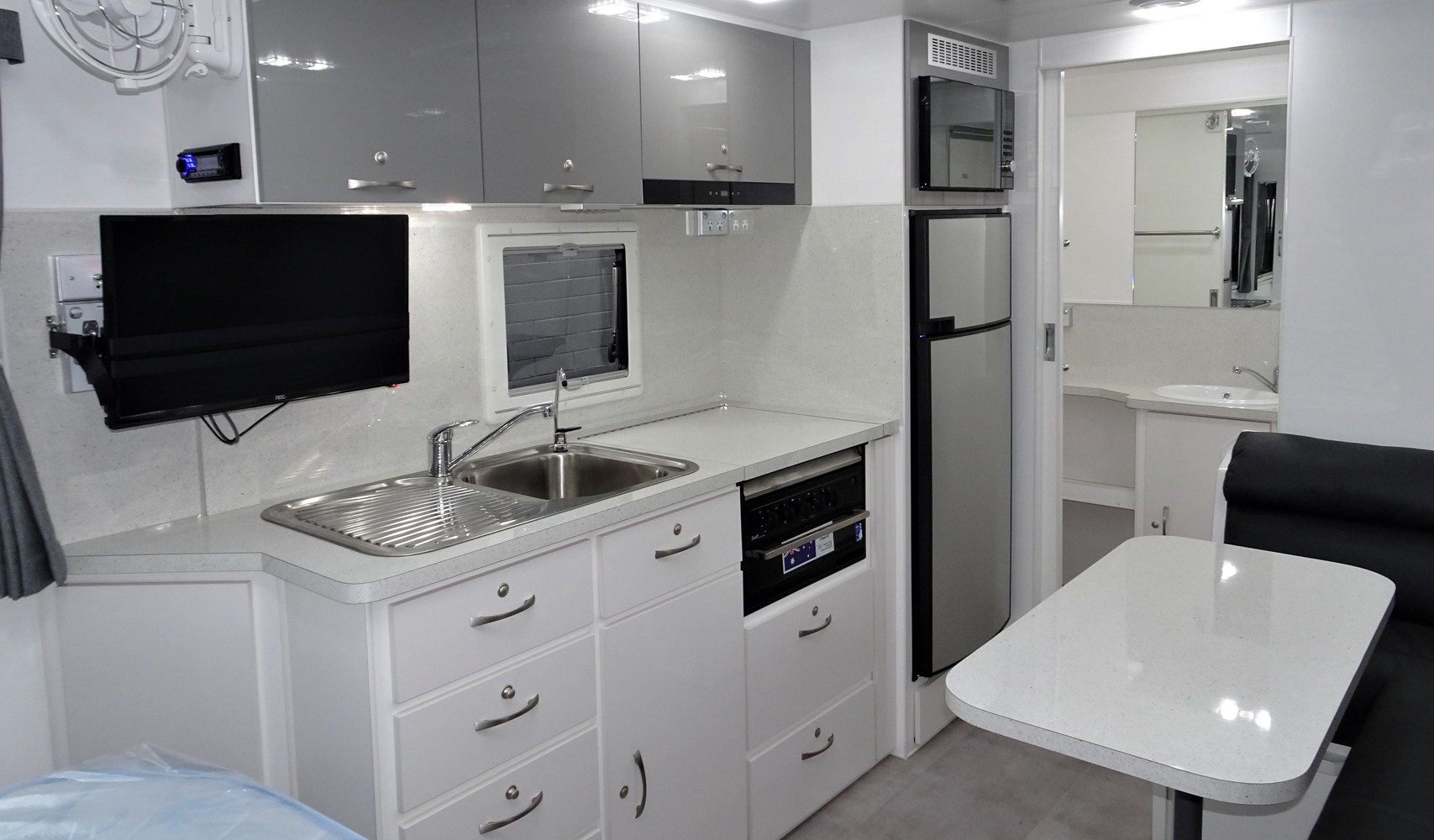

APPLIANCES

Externally vented 12v Rangehood
Deluxe 3 Gas/1 Electric Stove, Grill
Microwave oven Dometic 3 Way 190lt Upright Fridge/Freezer
IBIS reverse cycle airconditioner
24" Flat screen TV with inbuilt DVD player
Radio Single DIN CD/MP3/USB + Bluetooth with 2 x internal speakers
Winegard sensar HV TV Wind-up TV antenna (Vertical & Horizontal Polorization)

ELECTRICAL

All Electrical installations compliant with AS3000 & AS300
240/12v Smart charger
50amp anderson plug & Heavy duty trailer wiring (Individually fused)
Deep cycle AGM battery (1 x 120 AH)
Roof Mounted 150w Solar panels x 1 & solar regulator
12v LED Dimmable Internal Roof Lights
12v LED Dimmable lights under overhead cupboards
12v LED Bed lights12v Power points - 1 internal, 1 external
Ample 240v Double Power points
240v External and 12 volt External power outlet
External TV connection point

PLUMBING

Gas plumbed to AS5601
Water supply system Plumbed to AS3500
Mains tap on drawbar
12v Water pump, accumulator
Gas/Electric Hot water service 28lt
Temperature limiting valve for Hot water
2 x 95lt Water storage tanks with galvanised guards, lockable fillers & water level gauges

SAFETY

ADR Rated safety chains
Breakaway Emergency brake safety switch
Electric brakes to all wheels
Dexter Stability Control (DSC)
Fire extinguisher
LED Clearance, end marker, stop, tail & indicator lights
Fused 12volt Electrical ciruits
240V Earth Leakage Circuit Breaker
Rear vision camera, car screen & Heavy duty connection cable
Smoke detector
Trail-a-mate Hydraulic Jack stand & Wheel Brace
Gas Leakage detector

CONSTRUCTION

Meranti Timber Frame
Body Bonded & Bolted to Chassis
Coated Waterproof Laminated Floor
Full body insulation (Walls & roof)

OPTIONS (available in some models)

Rear Cutaway (Increased departure angle) #
Spare wheel mounted on Ratchet under van *
2 x Front mounted Jerry can holders *
Steel framed shade mesh stoneguard on drawbar *
External aluminium Composite Panel smooth (White) *
External aluminium Composite Panel smooth (Silver) *

External Checkerplate Box on Rear Bumper Bar *
Centre support and tension rafter for A&E 8500 series Awning *
Genuine Leather Upholstery *
Luxury Single size innerspring mattress (Lift up base on Gas struts) *

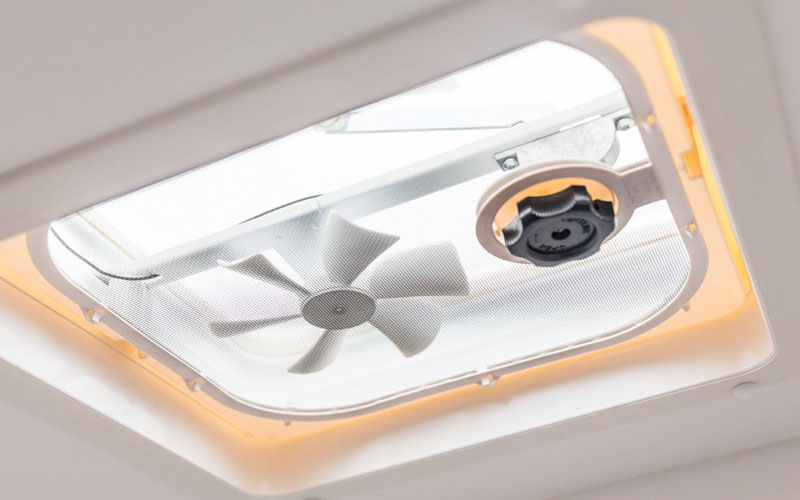

Fantastic roof vent 12v *
12v Sirocco fan/s *
Hardwood edged Benchtops and Table *

Webasto Diesel heater with External 10lt fuel tank *
Dometic E2400 Gas Heater *
Radio Double DIN CD/MP3/USB + Bluetooth with 4 x Internal Speakers & 2 x External speakers *
Deep cycle Absorbed Glass Mat batteries (2 x 120 AH) *
Lithium-iron-phosphate (LiFePO4) Battery Systems (system available from 100AH - 400AH) *
Pure Sinewave Inverter 600-3000w *
Additional Roof Mounted 150w Solar panels (Space permitting) *
External solar input for connection of freestanding solar panel *
Aircraft style roof strip lighting (Dimmable) *
Fully Automatic satellite TV Receiver & dish *
2nd 12v Water Pump, accumulator dedicated to 1 x water tank *
Additional Water storage tanks with galvanised guards, lockable fillers & water level gauges *
1 x 95lt Grey water tank *
Water filtration system *
Gas Bayonet *

* Optional Extra
# Available/Optional - Some models only


PREMIUM TOURER

CHASSIS

Built to ADR62/01standards
CruisemasterCRS2 2500KG Coil (Country Road) Independent trailing arm coil spring suspension w/single shock absorbers
Single Spare wheel mounted on rear Bumper Bar
3000kg Heavy Duty 50mm ball coupling
Integrated Handbrake
Bike rack mount plate
Aluminium Mesh in drawbar A-frame for storage
100 x 50mm Rear bumper bar with 3 stays
Tyres 265/75R16  with 16 x 8 Alloy

EXTERNAL APPOINTMENTS

Annexe light (LED) x 2
External aluminium cladding Ribbed (White or Silver)
A&E Dometic 8500 series Roll out Awning
Adjustable corner stabiliser legs
Aluminium checkerplate front, side & rear protection
Heavy duty galvanised fully sealed wheelarches Galvanised steel water tank protectors
Pressurising Rooftop Scupper vent
2 x 9kg LPG Gas Cylinders with Regulator & Changeover valve
Mains Pressure water connector and pressure reduction valve
Mudflaps
Pull-out Entry step
Dometic Tinted Acrylic windows (Double Glazed) - integrated blinds and Flyscreens
Dometic Premium Four Point locking security Door with steel mesh
Galvanised Tunnel boot locker with 2 x External access doors & Internal light
External Picnic table

INTERNAL APPOINTMENTS

Flikmixer tap
Cassette toilet with ceramic bowl
High Quality "Pillow" Upholstery
Luxury Queen size innerspring mattress (Lift up base on Gas struts)
L-Shaped dinette converts to extra bed or Bifold table at café seating
Skylight Hatch
Full height Laminex Splashback to Kitchen & Ensuite
Blockout curtains & pelmets
Acrylic or Timber internal furniture & cabinets
Soft close drawer runners

APPLIANCES

Externally vented 12v Rangehood
Deluxe 3 Gas/1 Electric Stove, Grill
Microwave oven
Dometic 3 Way 190lt Upright Fridge/Freezer
IBIS reverse cycle airconditioner
24" Flat screen TV with inbuilt DVD player
Radio Single DIN CD/MP3/USB + Bluetooth with 2 x internal speakers
Winegard sensar HV TV Wind-up TV antenna (Vertical & Horizontal Polorization)

ELECTRICAL

All Electrical installations compliant with AS3000 & AS300
240/12v Smart Charger
50amp anderson plug & Heavy duty trailer wiring (individually fused)
Deep cycle AGM battery (1 x 120 AH)
Roof Mounted 150w Solar panels x 1 & solar regulator
12v LED Dimmable internal roof lights
12v LED Dimmable lights under overhead cupboards
12v LED Bed Lights 12v power points - 1 internal, 1 external
Ample 240v Double power points
240v External and 12v External power outlet
External TV connection point

PLUMBING

Gas plumbed to AS5601
Water supply system Plumbed to AS3500
Mains tap on drawbar
12v Water pump, accumulator
Gas/Electric Hot water service 28lt
Temperature limiting valve for Hot water
2 x 95lt Water storage tanks with galvanised guards, lockable fillers & water level gauges

SAFETY

ADR Rated safety chains
Breakaway Emergency brake safety switch
Electric brakes to all wheels
Dexter Stability Control (DSC)
Fire extinguisher
LED Clearance, end marker, stop, tail & indicator lights
Fused 12volt Electrical ciruits
240V Earth Leakage Circuit Breaker
Rear vision camera, car screen & Heavy duty connection cable
Smoke detector
Trail-a-mate Hydraulic Jack stand & Wheel Brace
Gas Leakage detector

CONSTRUCTION

Meranti Timber Frame
Body Bonded & Bolted to Chassis
Coated Waterproof Laminated Floor
Full body insulation (Walls & roof)

OPTIONS (available in some models)

Rear Cutaway (Increased departure angle) #
Spare wheel mounted on Ratchet under van *
3500kg DO35 Off road Articulated Tow coupling *
2 x Front mounted Jerry can holders *
Steel framed shade mesh stoneguard on drawbar *
Wheels sized to suit tow vehicle (available for some vehicles) *
External aluminium Composite Panel smooth (White) *
External aluminium Composite Panel smooth (Silver) *

External Checkerplate Box on Rear Bumper Bar *
Centre support & Tension rafter for A&E 8500 series Awning *
Genuine Leather Upholstery *
Luxury Single size innerspring mattress (Lift up base on Gas struts) *
Fantastic roof vent 12v *
12v Sirocco fan/s *
Hardwood edged Benchtops and Table *

Webasto Diesel heater with External 10lt fuel tank *
Dometic E2400 Gas Heater *
Radio Double DIN CD/MP3/USB + Bluetooth with 4 x Internal Speakers & 2 x External speakers *
Deep cycle Absorbed Glass Mat batteries (2 x 120 AH) *
Lithium-iron-phosphate (LiFePO4) Battery Systems (system available from 100AH - 400AH) *
Pure Sinewave Inverter 600-3000w *
Additional Roof Mounted 150w Solar panels (Space permitting) *
Aircraft style roof strip lighting (Dimmable) *
Fully Automatic satellite TV Receiver & dish *
2nd 12v Water Pump, accumulator dedicated to 1 x water tank *
Additional Water storage tanks with galvanised guards, lockable fillers & water level gauges *
1 x 95lt Grey water tank *
Water filtration system *
Gas Bayonet *

* Optional Extra
# Available/Optional - Some models only


RUGGED TERRAIN

CHASSIS

Built to ADR62/01 standards
Cruisemaster XT 2600KG Coil (Offroad) Independent trailing arm coil spring suspension with Twin shock absorbers
Single Spare wheel mounted on rear Bumper Bar 3500kg DO35 Off road Articulated Tow coupling
Integrated Handbrake
2 x Front mounted Jerry can holders
Bike rack mount plate
Steel framed shade mesh stoneguard on drawbar
Aluminium Mesh in drawbar A-frame for storage
100 x 50mm Rear bumper bar with 4 stays
Tyres 265/75R16 with16 x 8 Alloy

EXTERNAL APPOINTMENTS

Annexe light (LED) x 2
External aluminium cladding Ribbed (White
 or Silver)
A&E Dometic 8500 series Roll out Awning
Adjustable corner stabiliser legs
Aluminium checkerplate front, side & rear protection
Heavy duty galvanised fully sealed wheelarches
Galvanised steel water tank protectors
Pressurising Rooftop Scupper vent
2 x 9kg LPG Gas Cylinders with Changeover valve
Mains Pressure water connector and pressure reduction valve
Mudflaps
Pull-out Entry step
Dometic Tinted Acrylic windows (Double Glazed) - integrated blinds and Flyscreens
Dometic Premium Four Point locking security Door with steel mesh
Galvanised Tunnel boot locker with 2 x External access doors & internal light
External Picnic table

INTERNAL APPOINTMENTS

Flikmixer tap
Cassette toilet with ceramic bowl
High Quality "Pillow"Upholstery
Luxury Queen size innerspring mattress (Lift up base on Gas struts)
L-Shaped dinette converts to extra bed or Bifold table at café seating
Skylight Hatch
Full height Laminex Splashback to Kitchen & Ensuite
Blockout curtains & pelmets
Acrylic or Timber internal Furniture & Cabinets
Soft close drawer runners

APPLIANCES

Externally vented 12v Rangehood
Deluxe 3 Gas/1 Electric Stove, Grill
Microwave oven
Dometic 3 Way 190lt Upright Fridge/Freezer
IBIS reverse cycle airconditioner
24" Flat screen TV with inbuilt DVD player
Radio Single DIN CD/MP3/USB + Bluetooth with 2 x internal speakers
Winegard sensar HV TV Wind-up TV antenna (Vertical & Horizontal Polorization)

ELECTRICAL

All Electrical installations compliant with AS3000 & AS300
240/12v Smart charger
50amp anderson plug & Heavy duty trailer wiring (Individually fused)
Deep cycle AGM battery (1 x 120 AH)
Roof Mounted 150w Solar panels x 1 & solar regulator
12v LED Dimmable Internal Roof Lights
12v LED Dimmable lights under overhead cupboards
12v LED Bed lights12v Power points - 1 internal, 1 external
Ample 240v Double Power points
240v External and 12 volt External power outlet
External TV connection point

PLUMBING

Gas plumbed to AS5601
Water supply system Plumbed to AS3500
Mains tap on drawbar
12v Water pump, accumulator
Gas/Electric Hot water service 28lt
Temperature limiting valve for Hot water
2 x 95lt Water storage tanks with galvanised guards, lockable fillers & water level gauges

SAFETY

ADR Rated safety chains
Breakaway Emergency brake safety switch
Electric brakes to all wheels
Dexter Stability Control (DSC)
Fire extinguisher
LED Clearance, end marker, stop, tail & indicator lights
Fused 12volt Electrical ciruits
240V Earth Leakage Circuit Breaker
Rear vision camera, car screen & Heavy duty connection cable
Smoke detector
Trail-a-mate Hydraulic Jack stand & Wheel Brace
Gas Leakage detector

CONSTRUCTION

Meranti Timber Frame
Body Bonded & Bolted to Chassis
Coated Waterproof Laminated Floor
Full body insulation (Walls & roof)

* Optional Extra
# Available/Optional - Some models only


OPTIONS (available in some models)

Rear Cutaway (Increased departure angle) #
Spare wheel mounted on Ratchet under van *
2 x Front mounted Jerry Can holders*
Steel framed shade mesh stoneguard on drawbar*
Wheels sized to suit tow vehicle (available for some vehicles) *
External aluminium Composite Panel smooth (White) *
External aluminium Composite Panel smooth (Silver) *
Annexe light (LED) x 3 *
Centre support & Tension rafter for A&E 8500 series Awning *
External Checkerplate Box on Rear Bumper Bar *

Genuine Leather Upholstery *
Luxury Single size innerspring mattress (Lift up base on Gas struts) *
Fantastic roof vent 12v *
12v Sirocco fan/s *
Hardwood edged Benchtops and Table *
Webasto Diesel heater with External 10lt fuel tank *
Dometic E2400 Gas Heater *
Radio Double DIN CD/MP3/USB + Bluetooth with 4 x Internal Speakers & 2 x External speakers *

Deep cycle Absorbed Glass Mat batteries (2 x 120 AH) *
Lithium-iron-phosphate (LiFePO4) Battery Systems (system available from 100AH - 400AH) *
Pure Sinewave Inverter 600-3000w *
Additional Roof Mounted 150w Solar panels (Space permitting) *
External solar input for connection of freestanding solar panel *
Aircraft style roof strip lighting (Dimmable) *
Fully Automatic satellite TV Receiver & dish *
2nd 12v Water Pump, accumulator dedicated to 1 x water tank *
Additional Water storage tanks with galvanised guards, lockable fillers & water level gauges *
1 x 95lt Grey water tank *
Water filtration system *
Gas Bayonet *



* Optional Extra
# Available/Optional - Some models only

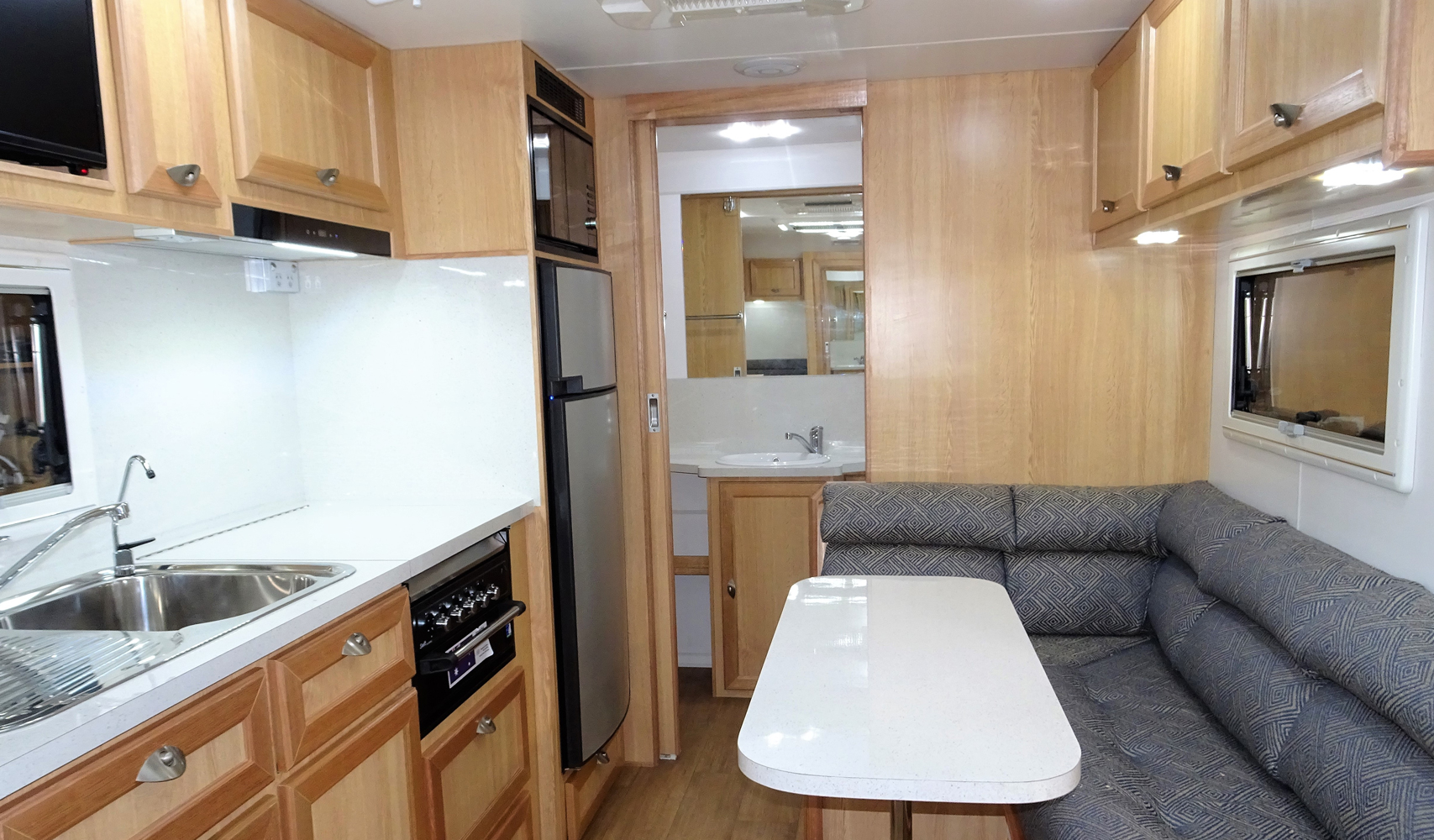

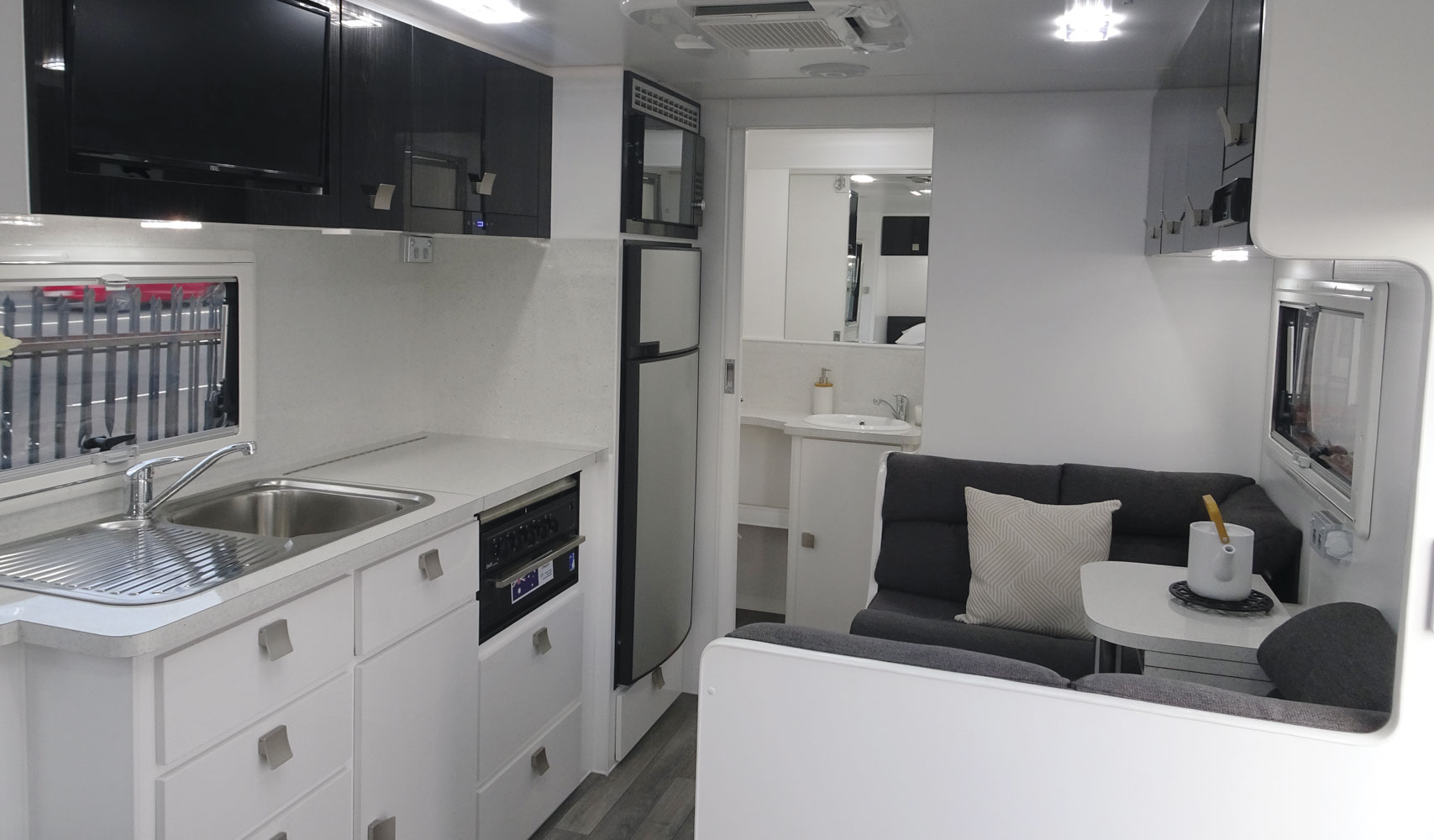

e800 SERIES INTERNAL LAYOUT

17' Layout

17' Layout

What our customers have to say about us

Recently picked up our triple bunk E900i and absolutely love the quality and layout. All throughout the build we had thorough communication and were always welcomed to come down and see our van at any stage. Thankyou again.

KELLY VARTY

We have our second Evernew caravan and have travelled twice up through outback NSW & Queensland down the coast, up the centre & down the west coast them back to Melbourne. Just love our Evernew & would buy none other. Everyone who looks through our 1000 series is impressed. After sales service is second to none.

Luanda Pianta

Caravans & Poptops

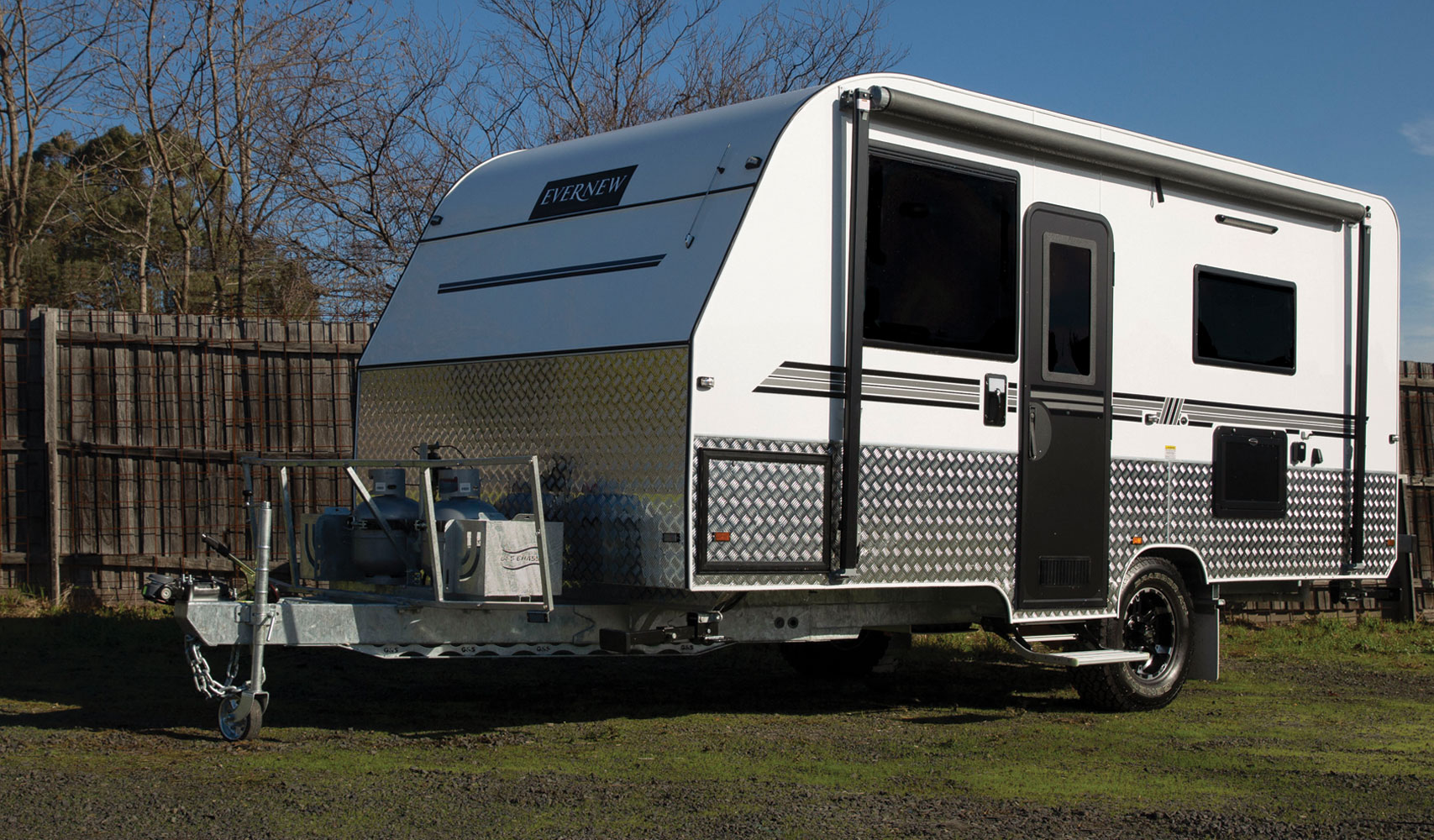

Evernew Caravans features a range of models in sizes ranging from the 13' e600 single axle, right through to the premium family sized e1000. Each Evernew Caravan is manufactured on site in our factory located in Melbourne, Australia.  We pride ourselves on our custom design process that allows us to build the perfect caravan or pop-top for your needs.
